The rod goes through the insulator to hold itself in place. The charges pass via the rod from the disc to the leaves. A thin aluminium foil is attached to the bottom of the jar. The aluminium foil is linked with a copper wire to protect the leaves from extraneous electrical interruptions. B) A negatively charged rod near the plate attracts positive charges at the plate and repels negative ones to the leaves. The leaves repel each other and diverge to indicate the presence of a charge.
Two thin gold leaves and an electrical conductor substance are strung nearby and nearly in contact with each other in this electroscope. Because the leaves are so thin, they lack firmness and dangle limply. The angle formed between them is dependent on the amount of electricity on them. If the instrument is insulated and the capacitance is fixed, the angle can be accurate to static voltage.
Gold Leaf Electroscope Questions
Try rubbing your shoes on the carpet and then bring the electroscope close to the sole of your shoe. Insert the straight end of the wire through the straw and create a hook about 1 inch long. You can also cut a small hole on the top of each leaf with a pair of scissors. Try to create at least 3 circles in your spiral, so the wire covers a larger surface area.Make sure that your wire has at least 1 coiled spiral. If you don’t have any wire on hand, cut off a long section from a metal coat hanger. Instead of a paper clip,a copper wire can be used with insulation removed in the ends.

It is pretty common for static demonstrators to carry a hair dryer around with them to dry devices so they function properly in classroom settings. Rubbing one material with another to get static is the triboelectric effect. An example most people are familiar with is cold dry winter days and being shocked by doorknobs and pets.
Construction of Gold Leaf Electroscope
The aluminium foil is grounded with the help of a copper wire so that the leaves are protected from external electrical disruptions. A gold leaf electroscope is a precise form of electroscope that is used to detect changes. It is made up of a brass rod with a brass disc at the top and two thin gold leaves in the shape of foils at the bottom.

Also because of this static nature it produces very high voltages. The gold-colored coating on the top portion of the glass is either lacquer or shellac. Its purpose was to prevent atmospheric moisture from depositing on the glass in the vicinity of the rod from which the leaves were suspended. Moisture, if it were present, could result in a leakage current over the glass that would rob the gold leaves of their charge.
Science project
If the power supply is not turned on, or is not set to the correct voltage, the electroscope will not work. Finally, make sure that there is nothing blocking the path between the power supply and the electroscope. If there is something blocking the path, the electroscope will not work.

An electroscope is an early scientific instrument that is used to detect the presence and magnitude of electric charge on a body. The first electroscope, a pivoted needle called the versorium, was invented by British physician William Gilbert around 1600. The pith-ball electroscope and the gold-leaf electroscope are two classical types of electroscope that are still used in physics education to demonstrate the principles of electrostatics. Ans.5 Electrostatic induction can be used to charge a gold-leaf electroscope. Move a negatively charged body close to the electroscope’s disc to create a positive charge on it. Positive charges will show on the electroscope’s disc, while negative charges will migrate to the leaves.
The reason is that the electrons are attracted to the upper surface of the electroscope disk, the side closest to the electrophorus, leaving the leaves with a positive charge. By moving the electrophorus disk away from or closer to the electroscope disk, the desired separation of the leaves can be obtained. Next the electroscope disk is grounded, e.g., by touching it. The electrons then travel to the disk leaving the electroscope with a net negative charge . The ground is removed and the electrophorus lifted away from the electroscope leaving the electroscope with a net negative charge.
Gold-leaf electroscope, from the physics department of Rome University "La Sapienza". A conductive base is provided to the gold-leaf electroscope so that. Use the scissors to cut a strip of foil about 5 inches by 1/2 inch.
You then have to open the jar and ground the inside by touching it. Gold leaves fold back when touched with hands because the charged is ‘earthed’. ORAU, a 501 nonprofit corporation, provides science, health and workforce solutions that address national priorities and serve the public interest. ORAU manages the Oak Ridge Institute for Science and Education for the U.S.

That’s because there’s no moisture in the air to balance out the charges. Center the lid on top of the jar—ideally, the aluminum leaves will reach about halfway down in the jar. Then, cut a long strip of electrical tape and secure it snugly around the rim of the jar, holding the lid in place. Flip your jar over and trace the opening onto a large piece of cardboard.
If the leaves touch the glass while sensing, the glass is now charged and the spot the leaves touched needs to be grounded before the instrument will behave predictably. You want the longest leaves you can get without them being able to touch the glass, or at least being able to swing up 70 degrees or so. If the leaves touch the glass they can transfer a charge and affect the function.
Its just not particularly noticeable to us at 50 or 60 hz hertz where the depth is (~3/8") 8.5mm+. At much higher frequencies this becomes a design consideration. Any sharp edge will cause static to bleed off through coronal discharge. The image with the flat and point show, in a conductor when the shape is flat the charges are even across the surface. Where as at the point there is a much higher charge imbalance. A few lone (+) charges are surrounded by a sea of available opposite charges.

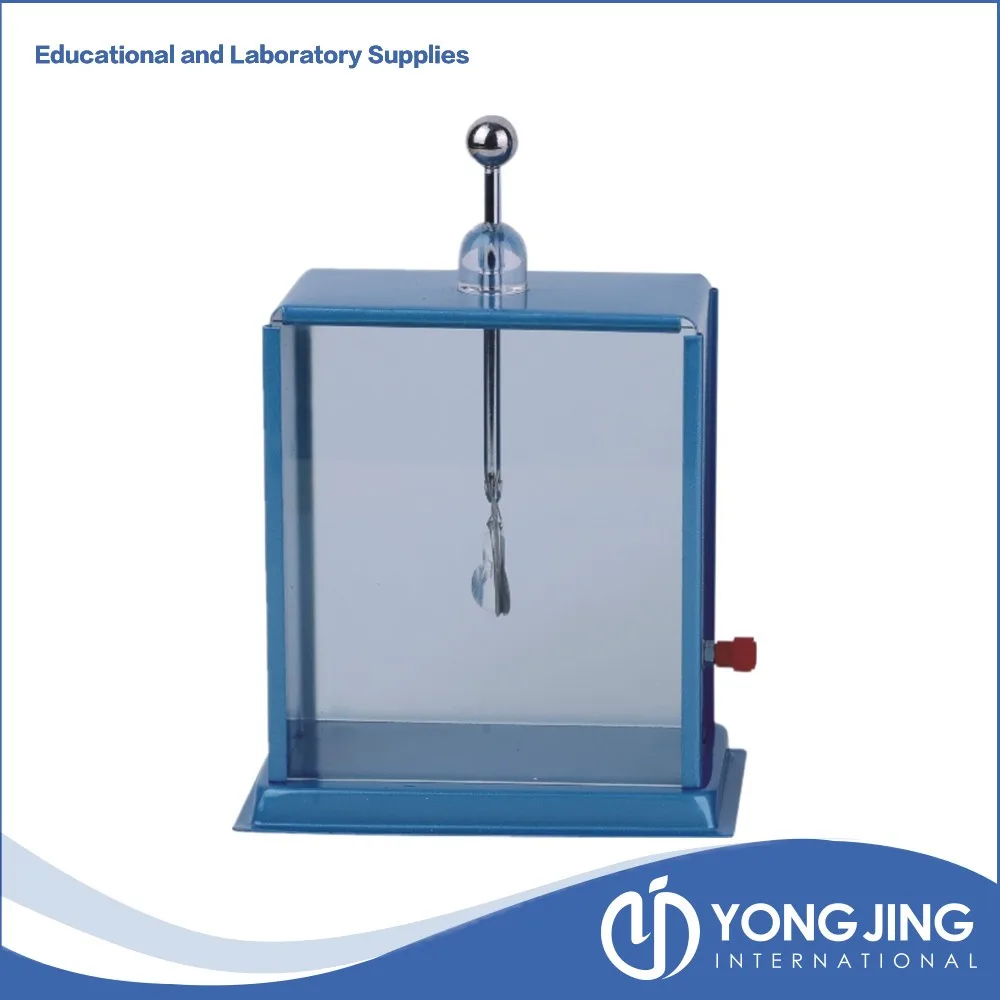

gold-leaf electroscope
Read on to learn how to make an electroscope at home, as well as how to use your new device. To identify if a body is a conductor or an insulator, two gold leaf electroscopes are taken. One gold leaf electroscope is charged so that the leaves will diverge.

To detect the presence or absence of charge on a body, we bring the body close to the gold leaf electroscope and touch it with the cap of the device. … This leads to a repulsive force between the two leaves as charges repel each other and hence, the two leaves diverge. First, cut a small piece of cardboard, and make a hole in the center. Next, cut a small piece of aluminum foil, and place it over the hole in the cardboard. Then, take the glass jar and place the cardboard with the aluminum foil over the top. Next, take the gold leaf and place it on top of the aluminum foil.
